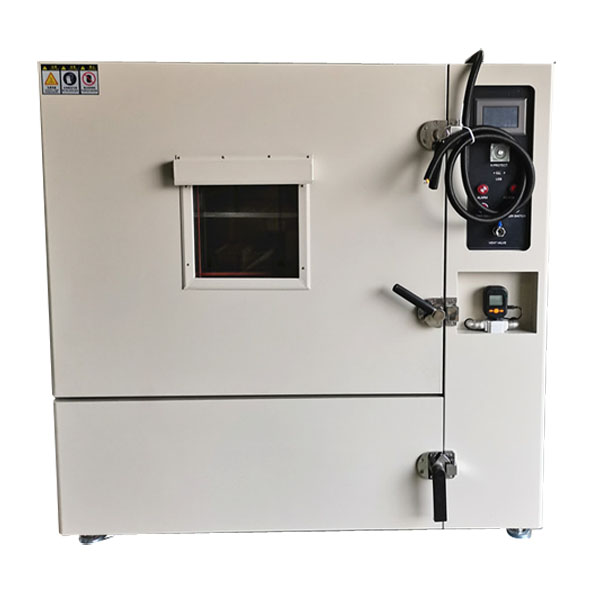

Vacuum oven/vacuum oven/vacuum defoaming box/vacuum drying box/vacuum leak detection box/simulated negative pressure testing machine/defoaming machine) are widely used in biochemistry, chemical and pharmaceutical, medical and health, agricultural scientific research, environmental protection, etc. Application field, used for powder drying, baking and disinfection and sterilization of various glass containers. It is especially suitable for rapid drying treatment and product dehydration and degumming of drying heat-sensitive, easily decomposed, easily oxidized substances and complex components.
Vacuum oven/vacuum oven/vacuum defoaming box/vacuum drying box/vacuum leak detection box/simulated negative pressure tester/defoamer) is a box-type drying equipment that dries dry materials under negative pressure. Its working principle is to use a vacuum pump to extract air and dehumidify, so that a vacuum state is formed in the working room, the boiling point of water is reduced, and the drying speed is accelerated.
Model Specifications | HTS- ZK -72
| HTS- ZK -150
| HTS- ZK -270
| HTS- ZK -480
| ||||||||||
Inner box size (mm) W × D × H | 450 × 400 × 400 | 500 × 500 × 600 | 600 × 500 × 900 | 800 × 600 × 1000 | ||||||||||
Dimensions (mm) W × D × H | Subject to the real object ( different temperature and outer box size ) | |||||||||||||
range of working temperature | Room temperature RT ~ 200 ℃ | |||||||||||||
Machine performance | Analytical accuracy | 0.1 ℃ | ||||||||||||
uniformity of distribution | ±2.0 ℃ % | |||||||||||||
warming up time | °C | 400 | 500 | 600 | 400 | 500 | 600 | 400 | 500 | 600 | 400 | 500 | 600 | |
min | 4 0 | 5 0 | 6 0 | 4 0 | 5 0 | 6 0 | 4 0 | 5 0 | 6 0 | 4 0 | 5 0 | 6 0 | ||
material | External material | SPCC steel plate powder paint treatment | ||||||||||||
internal material | SUS ﹟ 304 stainless steel CNC bending forming | |||||||||||||
Insulation material | Glass fiber wool / ceramic fiber wool | |||||||||||||
Sealing material | High temperature resistant silicone rubber | |||||||||||||
heating method | Hot air circulation/heat radiation | |||||||||||||
heater | Stainless Steel High Speed Heater | |||||||||||||
timer | 0.1S ～9999H | |||||||||||||
thermostat | Ordinary standard type / touch screen PLC program control type | |||||||||||||
Other accessories | Multi-layer tempered glass window ( within 300 ℃ ), compartment shelf (two pieces) | |||||||||||||
safety equipment | Circuit system load protection, fan overload protection, heating off when the temperature reaches the timer, fault warning light | |||||||||||||
Optional accessories | ①Recorder ; ②Oxygen content analyzer ; ⑥Communication interface; ⑦HEPA filter | |||||||||||||
Power ( V ) | AC 220V/OR AC 3 -phase 5 -wire 380V 50HZ | |||||||||||||
Note: 1. The above data are all measured at ambient temperature ( QT ) 25 ℃ . The studio has no load . 2. It can be made according to customer requirements to meet customer requirements. This technical information is subject to change without notice | ||||||||||||||
