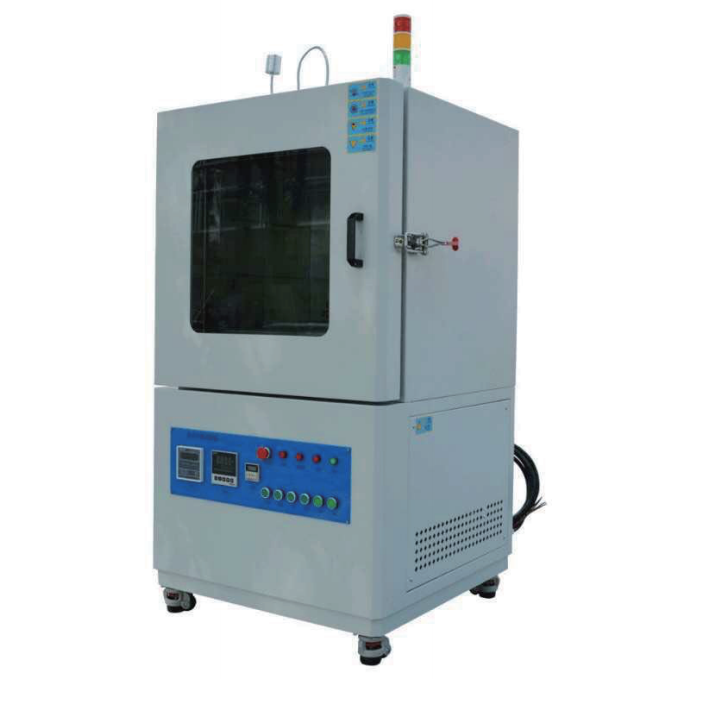

Uses: Vacuum oven (vacuum oven/vacuum drying oven/vacuum defoaming oven) is specially designed for drying heat-sensitive and oxidizing substances, and can be filled with inert gas, especially for some items with complex components. Drying, it can also be used as a fluid material or vacuum defoaming under specific conditions, or used for product sealability testing by farmers and herdsmen.

Features

1. Inner material: SUS mirror stainless steel plate with strong acid and alkali resistance and small thermal deformation.

2. External material: SECC steel plate electrostatic powder spray paint treatment, computer white color, beautiful and generous, excellent texture

3. Thermal insulation material: 100Kg/m3 diamond high-density glass rock wool, good thermal insulation, to ensure maximum temperature thermal insulation

4. The tight material of the anti-secret is high temperature resistant silica gel, which can withstand the high temperature of more than 300 degrees for a long time without deformation and cracking. 5. Heating material: M-type stainless steel heater, no pollution and no dust.

long lasting

5. The temperature control is a PID microcomputer automatic calculation intelligent temperature control table, and the PV/SV is displayed at the same time.

6. The temperature sensing input is CA(K)TYPE temperature sensing head, the output is 12V

7. The current controller adopts imported thyristor solid state relay (S S R) without contact and no spark phenomenon, which is safe and maintains high current stability.

Automatically adjust the output ratio

8. Timer: electronic digital 0~999 display, timing automatic temperature control, timing when the temperature is up, cut off and add power when the time is up

9. Timing and reporting function

10. Configure vacuum pump (optional)
