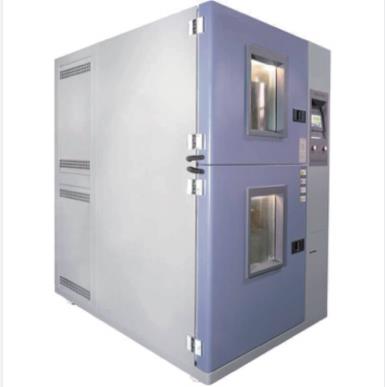

The thermal shock tester is used to test the degree to which the material structure or composite material can endure in a continuous environment of extremely high temperature and low temperature in an instant, so as to test the chemical changes caused by thermal expansion and contraction in a short time. or physical damage. Applicable objects include metals, plastics, rubber, electronics.... and other materials, which can be used as a basis or reference for product improvement. .

Execute to meet standards and test methods

1. GIB150.5A-2009 temperature) impact test

2. GB/T 2424.13-2002 temperature shock test

3. GIB 360B-2009 temperature shock test

4. GB/T 2423.2-2008 High temperature test method

5. GB/T 2423. 1-2008/IEC 6008-2-1-2007 Low temperature test

test method

6. Technical conditions of GB/T 10589-2008 low temperature test chamber

7. GB/T 11158-2008 Specifications for Technical Conditions of High Temperature Test Chamber

Features

1. The two boxes of equipment are divided into two parts: high temperature area and low temperature area. The test product is placed in the basket. When impacted, the basket will move the test product into the high temperature area or low temperature area for weighing and testing.

The test product is dynamic.

2. Adopt touch-sensitive graphic control interface, easy to operate.

3. The impact method uses the air path switching method to introduce the temperature into the test area for cold and thermal shock test.

4. When high temperature shock or low temperature shock occurs, the time can reach 999H, and the cycle period can reach 999 times.

5. The system can be used for automatic cycle engine or manual selective impact.

6. The cooling adopts a binary freezing system, which has a rapid cooling effect and a water-cooled cooling method.

7, can not test impact normal temperature
