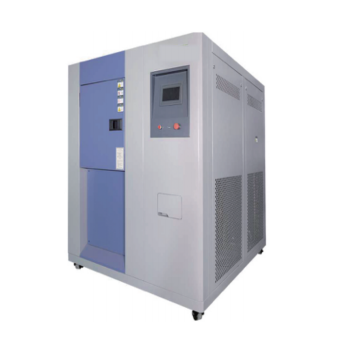

The thermal shock tester is used to test the degree to which the material structure or composite material can endure in a continuous environment of extremely high temperature and extremely low temperature in an instant, so as to test the chemical changes caused by thermal expansion and contraction in a short time. or physical damage. Applicable objects include metals, plastics, rubber, electronics... and other materials, which can be used as a basis or reference for product improvement.

Execute to meet standards and test methods

1. GJBI50.5A-2009 temperature shock test

2. GB/T 2424.13-2002 temperature: impact test

3. GJB 360B-2009 temperature shock test

4. GB/T 2423.2-2008 High temperature test method

5. GB/T 2423.1-2008/IEC 6008-2-1-2007 Low temperature test method

6. GB/T10589-2008 low temperature test chamber technical conditions

7. GB/T11158-2008 Specifications for Technical Conditions of High Temperature Test Chamber

Features:

1. The three boxes of equipment are divided into three parts: high temperature area, low temperature area and test area. The test product is placed in the test area, and the temperature of the high temperature area or low temperature area is charged into the test area for impact during impact, and the test product is static. Compared with the two boxes, there are more room temperature functions.

2. The touch-sensitive graphic control interface is adopted, and the operation tube is easy to operate.

3. The impact method uses the air path switching method to introduce the temperature into the test area for cold and thermal shock test.

4. When high temperature shock or low temperature shock occurs, the time can reach 999H, and the cycle period can reach 9999 times.

5. The system can be used for automatic cycle engine or manual selective impact, and can set the second or third area impact and the start of cold punch and hot punch.

6. The cooling adopts a binary refrigeration system, which has a rapid cooling effect and a water-cooled cooling method.

7. It can be tested to meet the standards and test methods at normal temperature: GJB150.5 temperature shock test; GJB360.7 temperature shock test; GB/2423.22 temperature shock test
