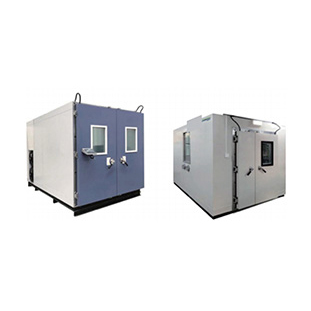

The walk-in constant temperature and humidity laboratory is mainly composed of a control system, a refrigeration system, a test chamber, a circulating fan, a heater, a humidifier, and a combination. Provide the industry's large-scale parts, semi-finished products, finished products, temperature and humidity environment testing, such as: computer terminals, auto parts, vehicles, military products, etc.

   Implementation meets standards and test methods

  1, GB2423.1-2008/ 1EC6008-2-1-2007 Low temperature test method

  2, GB/T2423.2-2008 high temperature test method

  3, GJB150.3A-2009 high temperature test method

  4, GJB150.4A-2009 low temperature test method

  5. GB2423.22-2008 Test method for rate of temperature change

  6, GBT2424.5-2006 temperature test chamber performance confirmation

  7, GB/T10586-2008 Technical Conditions of Low Temperature Test Chamber

  8, GB/T2423.3-2008 (lEC68-2-3) constant damp heat test method

  9, GJB150.9A-2009 Damp heat test method

  10^ G/BT2423.4-2008/lEC6008-2-30:2005 Alternating damp heat method

  11, GB/T5170.18-2005 Test equipment basic parameter verification method

  12, GB/T10586-2006 Technical Conditions of Damp Heat Test Chamber

  13. GBT2424.6-2006 Performance Confirmation of Temperature and Humidity Test Chamber

  14, GBT2424.7-2006 (with load) temperature test chamber measurement

  Features:

  1. The appearance can be matched with different colors according to the interior design or choose an all-stainless steel design, and the interior space is made of SUS304# stainless steel

  2. Rectangular double-glazed viewing window, which can be used to observe the test items during the test. The window is equipped with an anti-sweat electric heater device to prevent water vapor from condensing and water droplets.

  3. Explosion-proof lights are installed indoors, the test status of the product can be clearly observed during the test, and the anti-skid aluminum plate is installed at the bottom of the laboratory for safe use

  4. The box door has a layer of heat-insulating sealing strips, which can effectively isolate the internal temperature leakage

  5. It has a pure water filter unit to filter the tap water directly, no need to manually add water, easy to use

  6. The refrigeration and dehumidification system adopts imported brand compressors, which have the advantages of energy saving, low noise, low energy consumption, stable sexuality, etc., using environmentally friendly refrigerants (R23, R404A)

  7. The controller adopts imported LCD display screen, which can display the measured value, set value, time, etc. at the same time.

  8, the controller has multi-segment program editing and temperature, humidity can do quick (QUICK) or slope (SLOPE) control

9. TEMI2700 table 7.5-inch true color LCD display with RS-232/RS-485 communication interface, 2GB standard SD memory card, can be connected to Ethernet, 7-inch color display, including RS-232/RS-485 interface, (Optional upon request)

  10. The bottom of the machine is welded with channel steel to form a mesh structure to increase the load-bearing capacity, and it will never be deformed when used. The bottom of the integral laboratory is installed with movable caster positioning feet, and the channel steel at the bottom of the assembled test is directly installed on the laboratory floor.
