Execute to meet standards and test methods

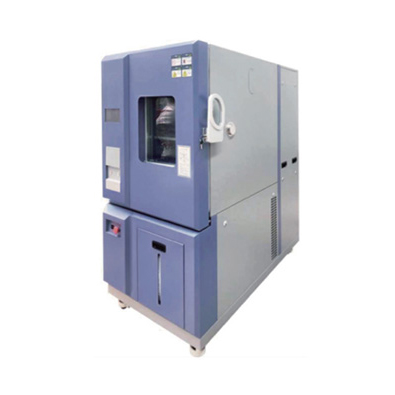

  The constant temperature and humidity testing machine, also known as the environmental testing machine, tests the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. It is suitable for testing the quality of electronics, electrical appliances, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products.

  1, GB2423.1-2008/1EC6008-2-1-2007 Low temperature test method

  2, GB/T2423.2-2008 high temperature test method

  3^ GJB150.3A-2009 High temperature test method

  4, GJB150.4A-2009 low temperature test method

  5. GB2423.22-2008 Test method for rate of temperature change

  6, GBT2424.5-2006 temperature test chamber performance confirmation

  7, GB/T10586-2008 Technical Conditions of Low Temperature Test Chamber

  8, GB/T2423.3-2008 (1EC68-2-3) Constant Damp Heat Test Method

  9, GJB150.9A-2009 Damp heat test method

  10, G/BT2423.4-2008/lEC6008-2-30:2005 Alternating damp heat method

  11. GB/T5170.18-2005 Test Equipment Basic Parameter Verification Method 12. GB/T10586-2006 Technical Conditions of Humidity and Heat Test Chamber 13. GBT2424.6-2006 Performance Confirmation of Temperature and Humidity Test Chamber

  Features

  1. High-quality appearance, the body adopts arc shape, the surface is treated with matte stripes, and the flat non-reaction handle is used, which is easy to operate, safe and reliable.

  2. Rectangular clad glass viewing window, which can be used to observe the test items during the test. The window is equipped with an anti-sweat electric heater device to prevent water vapor from condensing and water droplets, and high-brightness PL fluorescent lamps to maintain the lighting in the box.

  3. The double-layer insulation of the box door is tight and airtight, which can effectively isolate the internal temperature leakage. With an external water supply system, it is convenient to supplement the water supply of the humidification barrel, and it can be recycled and used automatically.

  4. The French "Taikang" brand is used in the compressor circulation system, which can effectively remove the lubricating oil between the condenser tube and the capillary tube, and the whole series adopts environmentally friendly refrigerants (R23, R404, R507).

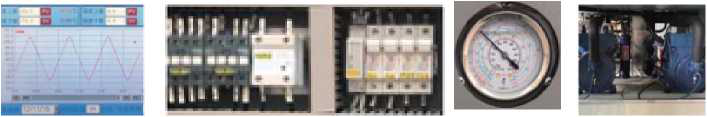

  5. The controller adopts imported LCD display screen, which can display the measured value, set value and time at the same time.

  6. The controller has multi-segment program editing and temperature and humidity can do quick (QUICK) or slope (SLOP) control.

  7. The built-in moving pulley is easy to move and place and has a strong positioning screw to fix the position.
