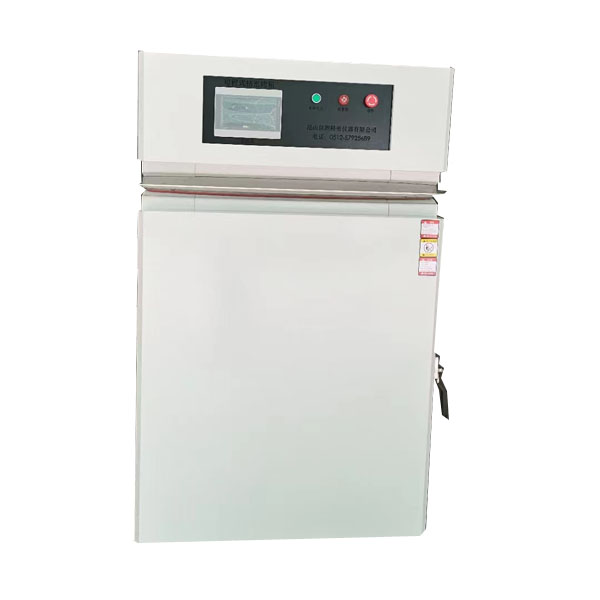

Features:
1. The inner material is SUS304 stainless steel plate
2. The external material is SPCC steel plate powder baking paint treatment;
3. The thermal insulation material is high-density fiber cotton, and the thermal insulation effect is good;
4. The inner box laminate is mesh type, which can be taken out freely;
5. The box has movable casters, which can be pushed arbitrarily and fixed in position;
6. The temperature control is a PID microcomputer, which can be automatically calculated, PV/SV can be displayed at the same time, and the key is set, and any temperature value between normal temperature and maximum temperature can be set;
7. Timer setting: 0.01 seconds to 9999 hours (you can choose to set hours, minutes, seconds), the temperature is timed, and the heating current is cut off when the time is up (the alarm device is activated at the same time)
8. The motor is a special type for long axis temperature resistance.
Model Specifications | HTS-JM-72 (A~E) | HTS-JM-150 (A~E) | HTS-JM-270 (A~E) | HTS-JM-480 (A~E) | HTS-JM-756 (A~E) | HTS-JM-1120 (A~E) | HTS-JM-1192 (A~E) | |||||||||||||||||||||||
Inner box size (mm) W × D × H | 450 × 400 × 400 | 500 × 500 × 600 | 600 × 500 × 900 | 800 × 600 × 1000 | 900 × 70 × 120 _ | 100 × 80 × 140 _ | 12 0 × 10 0 × 1 6 0 | |||||||||||||||||||||||
Dimensions (mm) W × D × H | Subject to the real object ( different temperature and outer box size ) | |||||||||||||||||||||||||||||
range of working temperature | A: Room temperature to 200 ℃ B: Room temperature to 300 ℃ C: Room temperature to 400 ℃ D: Room temperature to 500 ℃ E: Room temperature to 600 ℃ | |||||||||||||||||||||||||||||
Machine performance | Analytical accuracy | 0.1 ℃ | ||||||||||||||||||||||||||||
uniformity of distribution | ±2.0 ℃ % | |||||||||||||||||||||||||||||
warming up time | °C | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | |
min | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | ||
material | External material | SPCC steel plate powder paint treatment | ||||||||||||||||||||||||||||
internal material | SUS ﹟ 304 stainless steel CNC bending forming | |||||||||||||||||||||||||||||
Insulation material | Glass fiber wool / ceramic fiber wool | |||||||||||||||||||||||||||||
Sealing material | Silicone rubber / asbestos rope | |||||||||||||||||||||||||||||
heating method | Hot air circulation heating/natural convection heating/heat radiation heating | |||||||||||||||||||||||||||||
Heating system | Stainless Steel High Speed Heater | |||||||||||||||||||||||||||||
timer | 0.1S ～9999H | |||||||||||||||||||||||||||||
thermostat | Ordinary standard type / touch screen PLC program control type | |||||||||||||||||||||||||||||
Other accessories | Multi-layer tempered glass window ( within 260 ℃ ), compartment shelf (two pieces) | |||||||||||||||||||||||||||||
safety equipment | Circuit system load protection, fan overload protection, heating off when the temperature reaches the timer, fault warning light | |||||||||||||||||||||||||||||
Optional accessories | ①Recorder ; ②Cart ; ③Test hole ( Φ50mm ) | |||||||||||||||||||||||||||||
Power ( V ) | AC 220V/OR AC 3 -phase 5 -wire 380V 50HZ | |||||||||||||||||||||||||||||
Note: 1. The above data are all measured at an ambient temperature ( QT ) of 25 ℃ . The studio is under no load conditions . 2. The temperature above 400℃ needs to be customized . 3. Can be produced according to customer requirements to meet customer requirements. This technical information is subject to change without notice 4. All our equipment can be customized according to customer requirements. | ||||||||||||||||||||||||||||||
