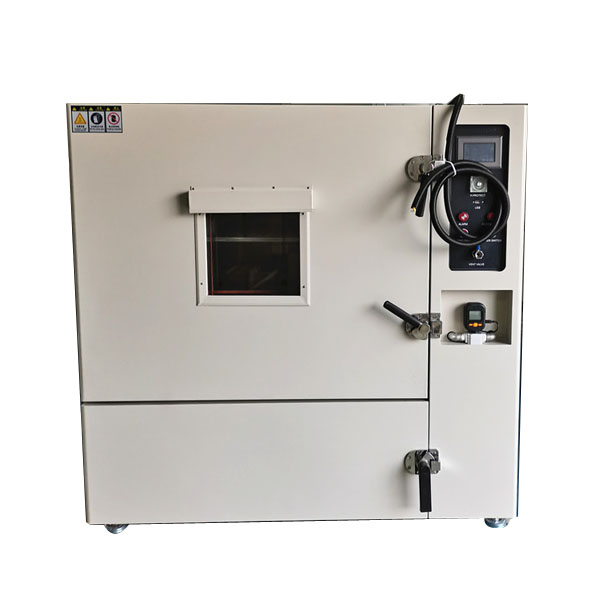

It is suitable for drying, curing, welding, annealing and other dust-free heat treatment in semiconductors, cameras, panels, electronic products, hardware products, medical and health care, instrumentation, factories, universities, scientific research and other departments.
Features:
1. Sealing design: The inner material is made of SUS304 stainless steel, the entire inner barrel is fully welded with argon arc welding, and the door is double-sealed to prevent dust from entering the oven;
2. External dust-proof treatment: the external material is SPCC steel plate after cleaning with soda water and powder baking paint treatment to prevent the generation of fine dust; or SUS304 stainless steel plate;
3. High-efficiency filter: HEPA filter is constructed with clean room and cleanliness level below 100;
4. Internal circulation air design: forced air circulation to ensure uniform temperature;
5. Energy saving: the thermal insulation material is high-density fiber cotton, with good thermal insulation effect;
6. The inner box laminate can be taken out freely, and the height can be adjusted;
7. Internal dust-free accessories: The internal structural accessories are made of non-oxidative and dust-free materials;
8. Outer box sealing: The outer box structure adopts special sealing structure design to ensure its harmony with the clean room;
9. Wide temperature range selection, faster heating rate;
10. Structural design for easy maintenance and replacement.
Model Specifications | HTS -CDZ- 72 (A~E) | HTS -CDZ- 150 (A~E) | HTS -CDZ- 270 (A~E) | HTS -CDZ- 480 (A~E) | HTS -CDZ- 756 (A~E) | HTS-CDZ - 1120 (A~E) | HTS-CDZ - 1192 (A~E) | |||||||||||||||||||||||
Inner box size (mm) W × D × H | 450 × 400 × 400 | 500 × 500 × 600 | 600 × 500 × 900 | 800 × 600 × 1000 | 900 × 70 × 120 _ | 100 × 80 × 140 _ | 120 ×100×160 | |||||||||||||||||||||||
Dimensions (mm) W × D × H | Subject to the real object ( different temperature and outer box size ) | |||||||||||||||||||||||||||||
range of working temperature | A: Room temperature to 200 ℃ B: Room temperature to 300 ℃ C: Room temperature to 400 ℃ D: Room temperature to 500 ℃ E: Room temperature to 600 ℃ | |||||||||||||||||||||||||||||
Machine performance | Analytical accuracy | 0.1 ℃ | ||||||||||||||||||||||||||||
uniformity of distribution | ±2.0 ℃ % | |||||||||||||||||||||||||||||
warming up time | °C | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | |
min | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | ||
material | External material | SPCC steel plate powder paint treatment | ||||||||||||||||||||||||||||
internal material | SUS ﹟ 304 stainless steel CNC bending forming | |||||||||||||||||||||||||||||
Insulation material | Glass fiber wool / ceramic fiber wool | |||||||||||||||||||||||||||||
Sealing material | High temperature resistant clean silicone rubber | |||||||||||||||||||||||||||||
heating method | Hot air circulation/heat radiation | |||||||||||||||||||||||||||||
heater | Dust-free high-speed heater | |||||||||||||||||||||||||||||
filter | High temperature resistant HEPA filter | |||||||||||||||||||||||||||||
Cleanliness | Class100/ Class1000/ Class10000/ Class100000 | |||||||||||||||||||||||||||||
timer | 0.1S ～9999H | |||||||||||||||||||||||||||||
thermostat | Ordinary standard type / touch screen PLC program control type | |||||||||||||||||||||||||||||
Other accessories | Multi-layer tempered glass window ( within 300 ℃ ), compartment shelf (two pieces) | |||||||||||||||||||||||||||||
safety equipment | Circuit system load protection, fan overload protection, heating off when the temperature reaches the timer, fault warning light | |||||||||||||||||||||||||||||
Optional accessories | ①Recorder ; ②Oxygen content analyzer ; ⑥Communication interface; ⑦HEPA filter | |||||||||||||||||||||||||||||
Power ( V ) | AC 220V/OR AC 3 -phase 5 -wire 380V 50HZ | |||||||||||||||||||||||||||||
Note: 1. The above data are all measured at ambient temperature ( QT ) 25 ℃ . The studio has no load . 2. It can be made according to customer requirements to meet customer requirements. This technical information is subject to change without notice | ||||||||||||||||||||||||||||||
