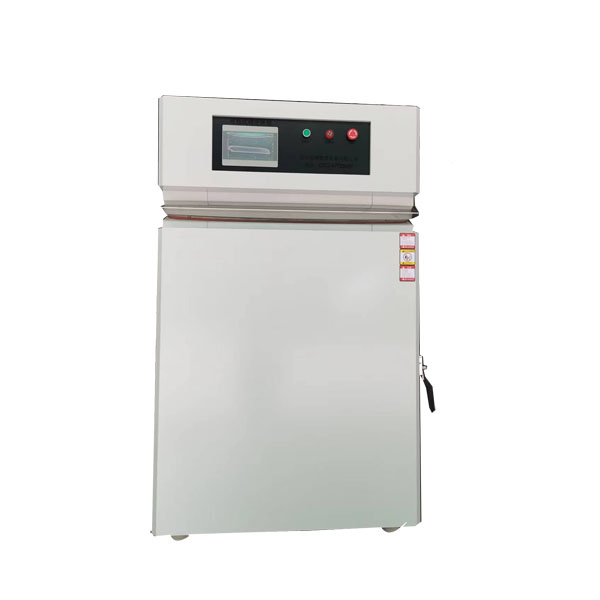

Scope of application:
It is suitable for high temperature treatment such as non-oxidative drying, welding and annealing in semiconductors, electronic products, hardware products, medical and health, instrumentation, factories, universities, scientific research and other departments.
Features:
1. Sealing design: the inner material is made of SUS304 stainless steel, and the entire inner barrel is fully welded with argon arc welding to prevent air from entering the oven and save inert gas;
2. External dust-proof treatment: the external material is SPCC steel plate, which has been cleaned with soda water and then powder-painted to prevent the generation of fine dust;
3. Energy saving: the thermal insulation material is high-density fiber cotton, with good thermal insulation effect;
4. Layered structure design: the inner box layer is mesh type, which can be taken out freely;
5. Free movement: the box has movable casters, which can be pushed and fixed at will;
6. Nitrogen filter: filter dust and water vapor to avoid contamination of products;
7. Internal circulation air design: forced air circulation to ensure uniform temperature;
8. Structure design of nitrogen preheating;
9. Air cooling system: rapid cooling air cooling design reduces waiting time;
10, a wide range of temperature options.
Model Specifications | HTS- DQ -72 (A~E) | HTS- DQ -150 (A~E) | HTS- DQ -270 (A~E) | HTS- DQ -480 (A~E) | HTS- DQ -756 (A~E) | HTS- DQ -1120 (A~E) | HTS - DQ -1192 (A~E) | |||||||||||||||||||||||
Inner box size (mm) W × D × H | 450 × 400 × 400 | 500 × 500 × 600 | 600 × 500 × 900 | 800 × 600 × 1000 | 900 × 70 × 120 _ | 100 × 80 × 140 _ | 1 20 × 1 00 × 1 60 | |||||||||||||||||||||||
Dimensions (mm) W × D × H | Subject to the real object ( different temperature and outer box size ) | |||||||||||||||||||||||||||||
range of working temperature | A: Room temperature to 200 ℃ B: Room temperature to 300 ℃ C: Room temperature to 400 ℃ D: Room temperature to 500 ℃ E: Room temperature to 600 ℃ | |||||||||||||||||||||||||||||
oxygen content | I: 500ppm; II: 200ppm; III: 50ppm | |||||||||||||||||||||||||||||
Machine performance | Analytical accuracy | 0.1 ℃ | ||||||||||||||||||||||||||||
uniformity of distribution | ±2.0 ℃ % | |||||||||||||||||||||||||||||
warming up time | °C | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | 300 | 400 | 500 | 600 | |
min | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | 3 5 | 4 0 | 5 0 | 6 0 | ||
material | External material | SPCC steel plate powder paint treatment | ||||||||||||||||||||||||||||
internal material | SUS ﹟ 304 stainless steel CNC bending forming | |||||||||||||||||||||||||||||
Insulation material | Glass fiber wool / ceramic fiber wool | |||||||||||||||||||||||||||||
Sealing material | Using high temperature resistant silicone rubber/high temperature resistant asbestos rope | |||||||||||||||||||||||||||||
circulatory system | Multi-blade circulating fan/heat radiation | |||||||||||||||||||||||||||||
Nitrogen plant | Flowmeter size adjustable (L/min) | |||||||||||||||||||||||||||||
heater | Stainless Steel High Speed Heater | |||||||||||||||||||||||||||||
timer | 0.1S ～9999H | |||||||||||||||||||||||||||||
thermostat | Ordinary standard type / touch screen PLC program control type | |||||||||||||||||||||||||||||
Other accessories | Multi-layer tempered glass window ( within 300 ℃ ), compartment shelf (two pieces) | |||||||||||||||||||||||||||||
safety equipment | Circuit system load protection, fan overload protection, heating off when the temperature reaches the timer, fault warning light | |||||||||||||||||||||||||||||
Optional accessories | ①Recorder ; ②Oxygen content analyzer ; ⑥Communication interface; ⑦HEPA filter | |||||||||||||||||||||||||||||
Power ( V ) | AC 220V/OR AC 3 -phase 5 -wire 380V 50HZ | |||||||||||||||||||||||||||||
Note: 1. The above data are all measured at ambient temperature ( QT ) 25 ℃ . The studio has no load . 2. It can be made according to customer requirements to meet customer requirements. This technical information is subject to change without notice | ||||||||||||||||||||||||||||||
